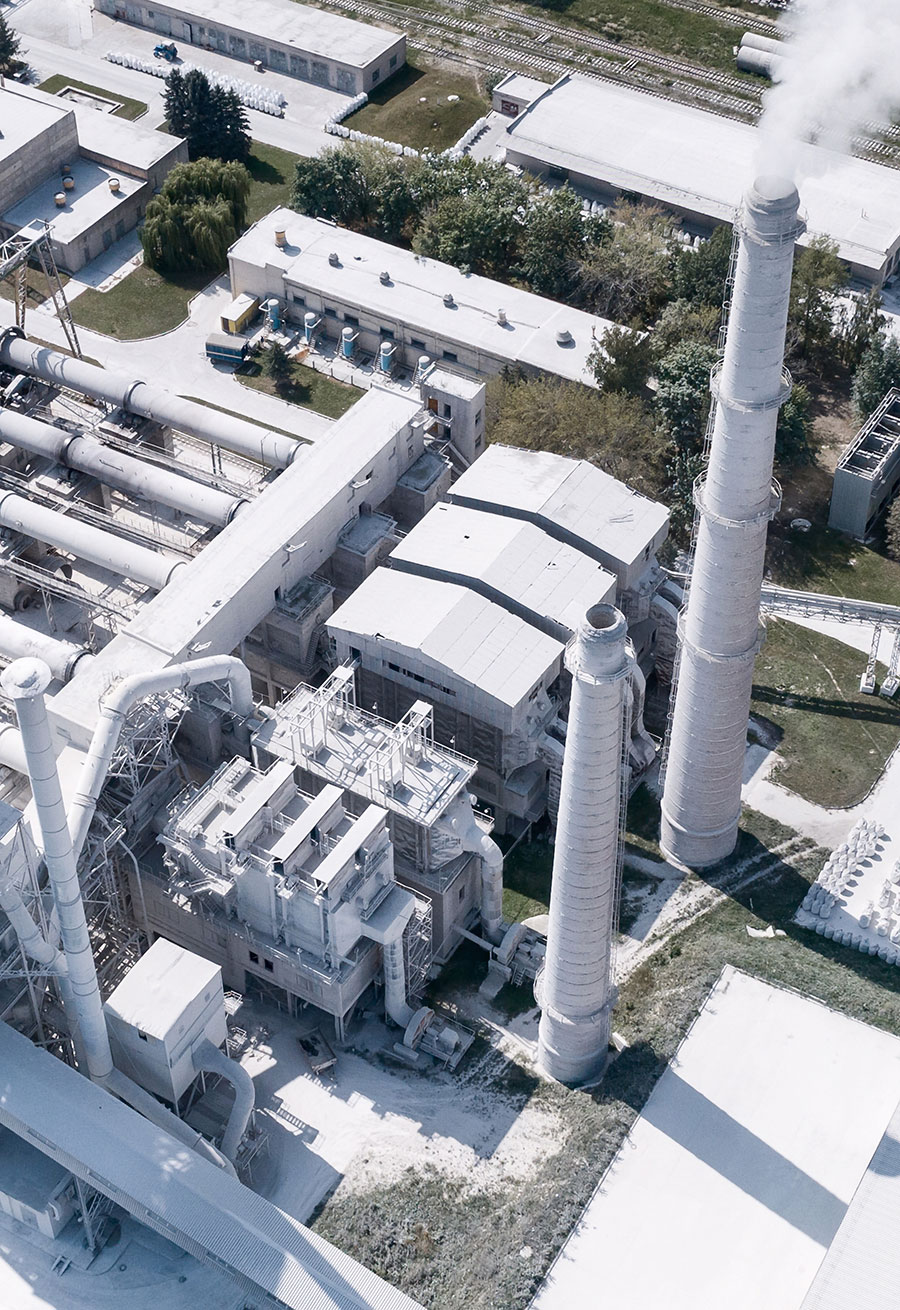

Cement and Mining

Cement production involves the creation of a hydraulic binder by adding gypsum or other additives to clinker. This mixture is produced by combining raw materials like limestone, clay, marl, and iron or that contain various oxides and then heating them to a specific temperature.

Cement and Mining

In the cement and mining industry, the first step is preparing raw materials, which are obtained from furnaces and then homogenized, broken down, premixed, and milled before being sent to stock silos.

The raw mix is then sent to rotary furnaces via elevators for the sintering process, resulting in the production of clinker. These semi-finished products are then stored in silos before being ground with various additives, depending on the type of cement being produced.

The finished cement is then packaged, loaded, and unloaded in various forms, such as bagged cement, bulk cement, or big bags, depending on the customer's requirements.

Mining companies, on the other hand, work with quarries and deal with heavy and valuable loads, including marble. As such, they require drive systems that can operate 24/7, from machines used in processing output products to transfer systems used in material handling. NRW Drive Technologies offers rigid-body gear units with wide reduction ratios and high moment values of up to 800.000 Nm to meet the needs of cement and mining companies.

Related Solutions

Cement and Mining Solutions

PCS Series

PCS series gear units of NRW Drive Technologies serving up to 60 tones of capacity are optimum solution partners for crane industry thanks to their silent, compact bodies and easy maintenance features.

  • Helical gear units with parallel axis input and output.
  • A rigid structure in case.
  • System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
  • Different input options may be provided (Coupled motor, PAM, Servo motor mounted, ...).
  • Output shaft may be splined in accordance with DIN 5480-82 form and drum flange may be provided as output shaft accessory.
  • Motors used are double speed (2-12 poles) or single speed (frequency inverter) and have IP55 protection class.
  • Extra fan application is recommended for 2-12 pole motors.
  • Cases are manufactured from aluminum and cast iron (GGG 40-50).
  • Gears are made of cast and 21NiCrMo2 case-hardening steel.
  • High-quality bearing and sealing components are used.
  • Special requests of the customers may be considered.

  Detail...

PH/PB Series

Industrial type gear units operate especially under heavy working conditions, have rigid case, bear high moments up to 480000 Nm and stand out with silent operation and easy maintenance features.

  • Helical - bevel gear units with parallel axis input and output or 90° axis angle.
  • Casing with feet, flange F options.
  • A rigid structure in case.
  • Gear units used to meet needs for high power under heavy working conditions.
  • System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
  • Different input options available (IEC, W, ...).
  • Different output options available (Solid shaft, Hollow shaft, With shrink disc, ...).
  • Different mounting options available ( B5 flange, Torque arm platform,...).
  • Cases are manufactured from sfero (GGG 40-50) and peak (GG 20-25).
  • Gears are made of cast and 21NiCrMo2 case-hardening steel.
  • High-quality bearing and sealing components are used.
  • Special requests of the customers may be considered.

  Detail...

D/M Series

D/M series parallel shaft mounted gear units produced with hollow shaft or solid shaft are commonly preferred in conveyor drive systems.

  • Helical gear units with parallel axis input and output.
  • A rigid structure in case.
  • System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
  • Different input options may be provided (Coupled motor, IEC, PAM, W, Servo motor connected, ...).
  • Different output options available (Solid shaft, Hollow shaft, With shrink disc, ...).
  • Different mounting accessories available (B5 flange, B14 flange, Rubber buffer for torque arm, ...).
  • Cases are manufactured from sfero (GGG 40-50) and peak (GG 20-25).
  • Gears are made of cast and 21NiCrMo2 case-hardening steel.
  • High-quality bearing and sealing components are used.
  • Special requests of the customers may be considered.

  Detail...

After-Sale Services

For all your maintenance and repair processes, we provide warranty, product upgrade and maintenance/repair services and extend the life of your investment with our experienced team in our broad and competent service network.

  More information

Gear Unit Selection Application

Determine your need for gear unit, then we will talk about the optimum NRW solution for you together...

  START
