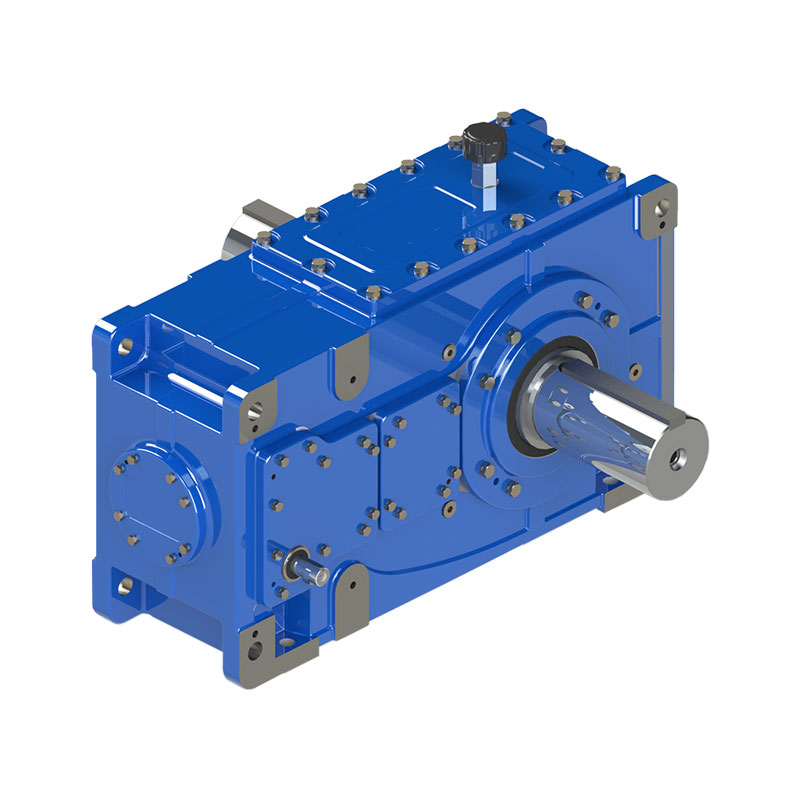

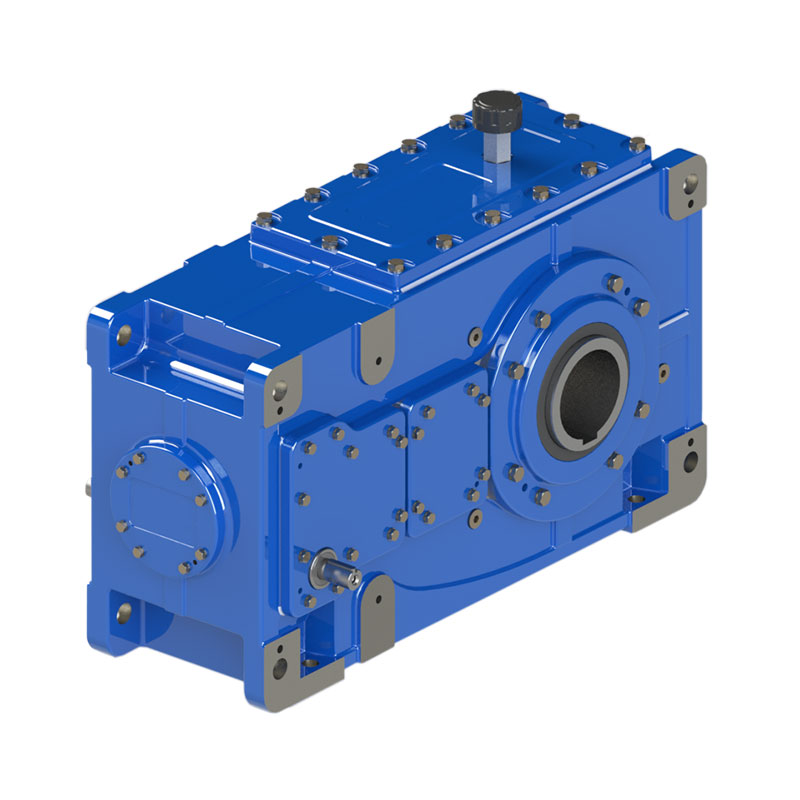

Industrial Type Gear Units

PH/PB Series

Industrial type gear units operate especially under heavy working conditions, have rigid case, bear high moments up to 480000 Nm and stand out with silent operation and easy maintenance features.

  • Helical - bevel gear units with parallel axis input and output or 90° axis angle.
  • Casing with feet, flange F options.
  • A rigid structure in case.
  • Gear units used to meet needs for high power under heavy working conditions.
  • System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
  • Different input options available (IEC, W, ...).
  • Different output options available (Solid shaft, Hollow shaft, With shrink disc, ...).
  • Different mounting options available ( B5 flange, Torque arm platform,...).
  • Cases are manufactured from sfero (GGG 40-50) and peak (GG 20-25).
  • Gears are made of cast and 21NiCrMo2 case-hardening steel.
  • High-quality bearing and sealing components are used.
  • Special requests of the customers may be considered.
For more information:
Contact Our Sales Representative

Contact Our Sales Representative

Technical Specs
MinMax
Power [kW]3.54650
Moment [Nm]2400480.000
Reduction Ratio1.25460
Related Documents
  PH/PB Series Catalogue (PDF, 13.3 Mb)   PH/PB Series Declaration of Conformity   Spare parts list for PH/PB series   PH/PB Operation and Maintenance Instruction   PH/PB ATEX Operation and Maintenance Instruction
