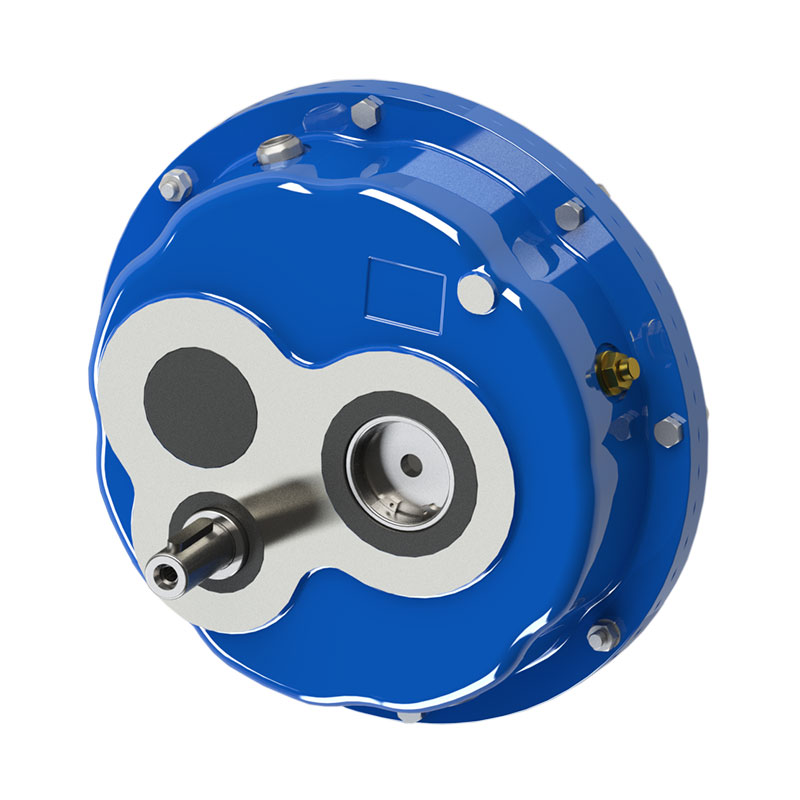

Shaft Mounted Helical Gear Units

Pt/A Series

Preferred in various transfer systems thanks to their wide reduction ratio, compact structure and easy maintenance, NRW Drive Technologies Pt/A Series gear units can be driven with belt-pulley or chain mechanisms.

  • Helical gear units with parallel axis input and output.
  • A rigid case structure consisting of two components.
  • System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
  • Free input shaft enables driving.
  • Different output options available (Hollow shaft, With shrink disc, ...).
  • Mounted with torque arm.
  • Cases are manufactured from cast iron (GGG 40-50) and peak (GG 20-25).
  • Gears are made of cast and 21NiCrMo2 case-hardening steel.
  • High-quality bearing and sealing components are used.
  • Special requests of the customers may be considered.
For more information:
Contact Our Sales Representative

Contact Our Sales Representative

Technical Specs
MinMax
Power [kW]0.5240
Moment [Nm]14016800
Output Speed [r/min]535
